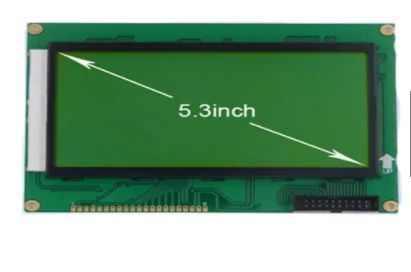

5.3 Inch Graphic LCD Display Module 240X128 Resolution STN Negative

1000
MOQ
DISCUSSABLE
Price
5.3 Inch Graphic LCD Display Module 240X128 Resolution STN Negative
Features Gallery Product Description Chat Now
Features
Specifications
Backlight: Yellow Green LED
Standard: ISO9001:2008,ROHS
Power Supply Voltage: 5V
Viewpoint: 6 O’clock
Driving Voltage: 5.0 V
Overall Dimensions: 144.00 X 104.00 X 14.00mm
Format: 240*128 Dots .
Size: 5.3inch
Highlight:

5.3 inch graphic LCD module

,

240x128 STN LCD Module

,

STN Graphic LCD Display Module
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
5.3 Inch Graphic LCD Display Module 240X128 Resolution STN Negative
Product Specifications
Resolution 240 × 128
Type LCM
DOT-Matrix Row/Column-Driven
LCD Drive Mode Static Drive LCD Module
Outline Size 144.00 × 104.00 × 14.00mm
Viewing Size 107.97 × 57.57mm
Technical Details
Item Content Description
1 Customized Customized
2 Resolution 240 × 128
3 Polarizer type transflective
4 Viewing angle 6 o'clock
5 Driving Method 1/64 duty, 1/9 bias
6 Operating Temperature -10°C to +60°C
7 Storage Temperature -20°C to +70°C
8 Driver IC T6963C
9 Voltage VDD=5V

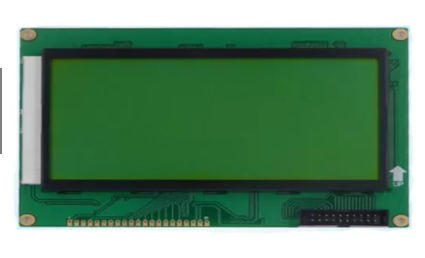

5.3 Inch Graphic LCD Display Module 240X128 Resolution STN Negative 0 5.3 Inch Graphic LCD Display Module 240X128 Resolution STN Negative 1
Application Fields
Audio products
Medical Equipment
Industrial products
Automobiles
Sports Equipment
Watches
Household appliances
Available COB LCD Modules
Model Content (W × H) Module size (mm) View area (mm) Dot size (mm) Dot pitch (mm) Driving Method Controller LSI IC Package STN-TYPE FSTN-TYPE
8D-C2004A 20×4 98.0×60.0 76.0×25.2 0.55×0.55 2.95×4.75 1/16 S6A0069 COB Y Y

5.3 Inch Graphic LCD Display Module 240X128 Resolution STN Negative 2
