Home /Products/Graphic LCD Display Module/320 X 240 Dots Graphic LCD Display Module Grey Mold COB LCM Type

320 X 240 Dots Graphic LCD Display Module Grey Mold COB LCM Type

1000
MOQ
DISCUSSABLE
Price
320 X 240 Dots Graphic LCD Display Module Grey Mold COB LCM Type
Features Gallery Product Description Chat Now
Features
Specifications
Power Supply Voltage: 5V
Standard: ISO9001:2015,ROHS
Operating Temp: -20 To 70℃
Display: 320×240 Dots
Display Color: Monochrome
Viewpoint: 6 O’clock
Highlight:

320x240 graphic LCD display module

,

grey mold COB LCM display

,

graphic LCD module with COB
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
320 X 240 Dots Graphic LCD Display Module Grey Mold COB LCM Type
Key Specifications
Resolution 320 X 240
Type LCM
DOT-Matrix Row/Column-Driven
LCD Drive Mode Static Drive LCD Module
Outline Size 160.00 X 109.00 X 11.58mm
Viewing Size 122.00 X 92.00mm
Technical Details
ITEM CONTENT DESCRIPTION
1 Customized Non-Customized
2 Resolution 320 X 240
3 Polarizer type transflective
4 Viewing angle TN
5 Driving Method 1 / 64 duty,1 / 9 bias
6 Operating Temperature -10 -60
7 Storage Temperature -20-70
8 Driver IC Ra8835ap3n
9 Voltage VDD=5V

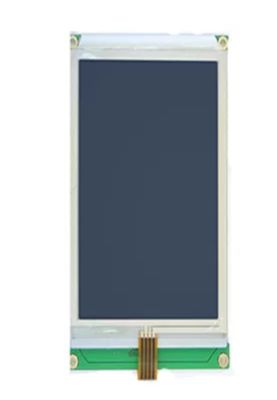

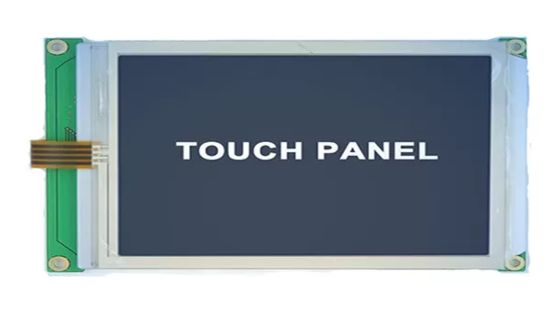

320 X 240 Dots Graphic LCD Display Module Grey Mold COB LCM Type 0 320 X 240 Dots Graphic LCD Display Module Grey Mold COB LCM Type 1
Production Line Specifications
  • Clean Room class 10k@0.8um, Pressure 0.8kgf
  • Antistatic floor, resistance: 1x10 ohm to 1x10 ohm
  • COG production lines: 4
  • Backlight production lines: 2
  • Existing machine capacity will be 1KK per month
320 X 240 Dots Graphic LCD Display Module Grey Mold COB LCM Type 2
Quality Assurance
  • In compliance with ISO9001:2015 Quality Management
  • One year's guarantee for unartificial damage
Product Features
  • Small LCD display screen
  • Reasonable price
  • Large capacity
  • Certificate ISO; Rohs, REACH
  • Dimension as customer request
  • STN blue small LCD display screen

320 X 240 Dots Graphic LCD Display Module Grey Mold COB LCM Type 3
